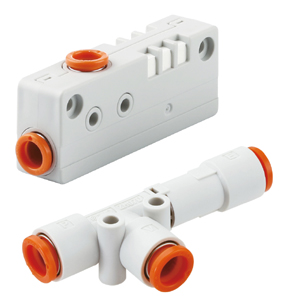

ZH-A, Vacuum Ejector, Box Style/Body Ported Style, Inch
SMC · Vacuum Ejectors

ZH-A, Vacuum Ejector, Box Style/Body Ported Style, Inch

Series: ZH-NEW
Selected article ZH10DSA-07-07-09NS

Nozzle Diameter: 10 (Ø 1.0 mm) | Model: D (Body Ported Style) | Vacuum Pressure: S [-90 kPa; -89 kPa (Box Style)]

Send one item directly or combine several products in a single request.

Datasheet Configurator

About this product

Body ported type/ Box type vacuum ejector. Compact and lightweight Suction flow rate up to 155 l/min Nozzle diameters: 0.5, 0.7, 1, 1.3, 1.5, 1.8 and 2 mm Multiple piping variations: One-touch fittings and screw-in connections (G/Rc/NPT) 4 mounting types: direct, standard bracket, L-bracket or DIN rail.

Technical information

Collection ZH*A
Model D (Body Ported Style)

Choose a variant

3 variants in this series
