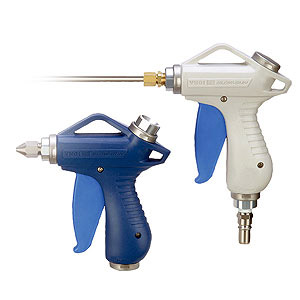

VMG, Blow Gun, Standard Type

Series: VMG
Selected article VMG11BU-F02-31

02 (Screw-in (Port Size 1/4)) · Piping Type: F (G(PF)) | Piping: 1 (Bottom Direction) | Nozzle: 31 (Copper Extension Nozzle 300 mm Length, VMG1-06-150-300)

Send one item directly or combine several products in a single request.

Datasheet Configurator

About this product

Taking energy-saving into consideration, blow gun series VMG has a large effective area of 30mm² (without nozzle) with a ratio of 10.7:1 over the traditional air guns. Pressure loss is 1% or less when nozzle bore size 2.5mm is used. Due to adoption of balance type, lever operation force is not adversely affected by supply pressure. Piping direction is optional from top or bottom and nozzle is also optional.

Technical information

Nozzle Cover Nav
Collection Blow Guns

Choose a variant

11 variants in this series
